Handling Unit Template

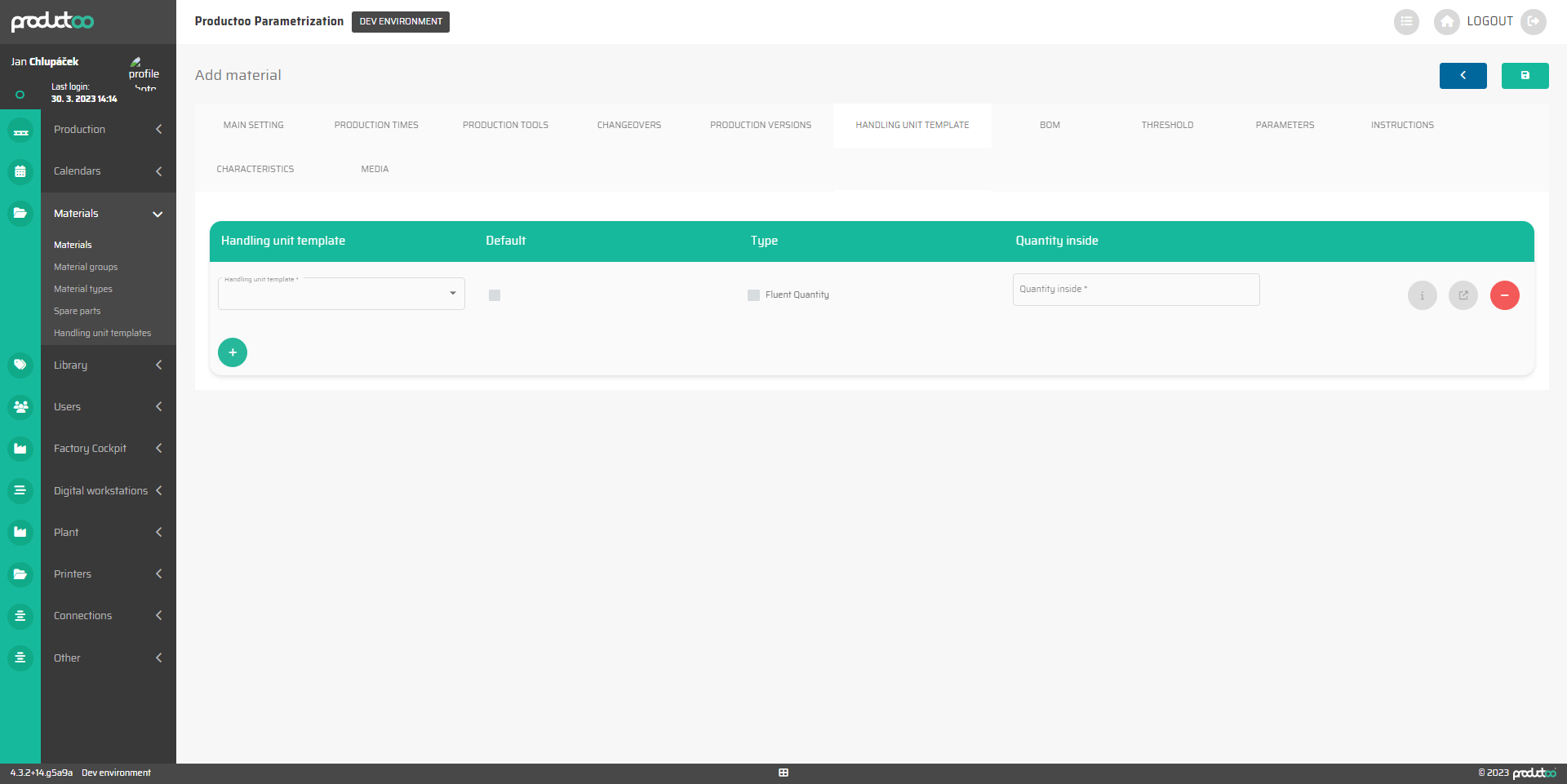

This tab is used for the assignment of handling unit templates for the material that we’re creating or editing. Material can have multiple handling unit templates. We can set up the parameters for Handling unit templates in the so-called subsection in the section material, model Parameterization.
Operational buttons:
- By pressing this button we can add another row with the handling unit template.
- Opens a dialog, Customer determination, with the two pieces of information from the handling unit template we selected. Customer Name and Customer Code and button detail (opens new browser tab with parametrization of this Customer).
:Detail: - Redirects us into the subsection Handling unit templates in section material, where we have all editable information about handling unit templates
:minus_delete: - Deletes a row with set up handling unit from the tab handling unit templates.
In the below table, there are all the parameters of the Material, tab Handling unit template with its description
Parameter name | Limitations | Possible values | Description | DB field |
|---|---|---|---|---|
Handling unit template | defined values | The list of all handling units templates available for selection | List of all Handling Unit Templates created in the application. | [HANDLING_UNIT].[ID_HANDLING_UNIT_TEMPLATE] |
Default | checkbox | on / off | Dnable/disables setting the handling unit template as a default template during Production Item manual creation. | [PRODUCTION_LINE].[ID_ART_PLANNER_DEFAULT] |
Type | checkbox | on / off | Defines whether an unlimited amount of this material can be allocated in this Handling Unit Template. It is suitable for use in cases where liquid or bulk materials are involved and their exact quantity cannot be guaranteed in each Warehouse Material. | [CHANGEOVER_HANDLING_UNIT_TPL].[ID_QUEUE_ITEM_TYPE] |
Quantity inside | 0 or positive number | Number | The maximal quantity inside of the handling unit. | [HANDLING_UNIT_TEMP_MAT_REL].[QUANTITY] |

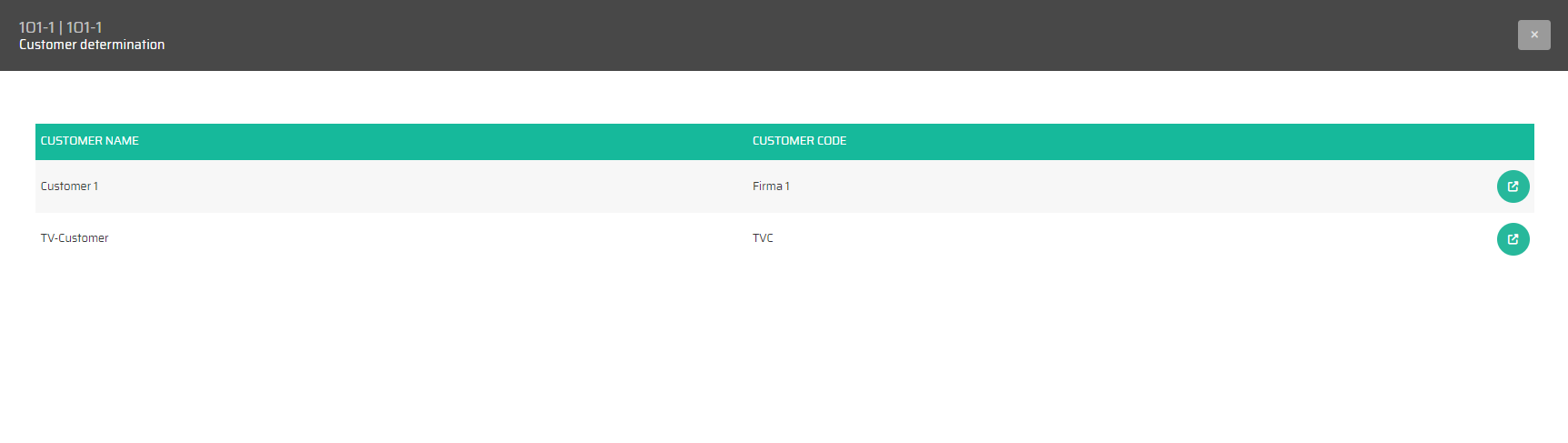

Dialog window of Customer determination of selected Handling unit template:
