Production lines - PC

A production line is a manufacturing process that involves a series of interconnected stages where each workstation has a specific task or operation.

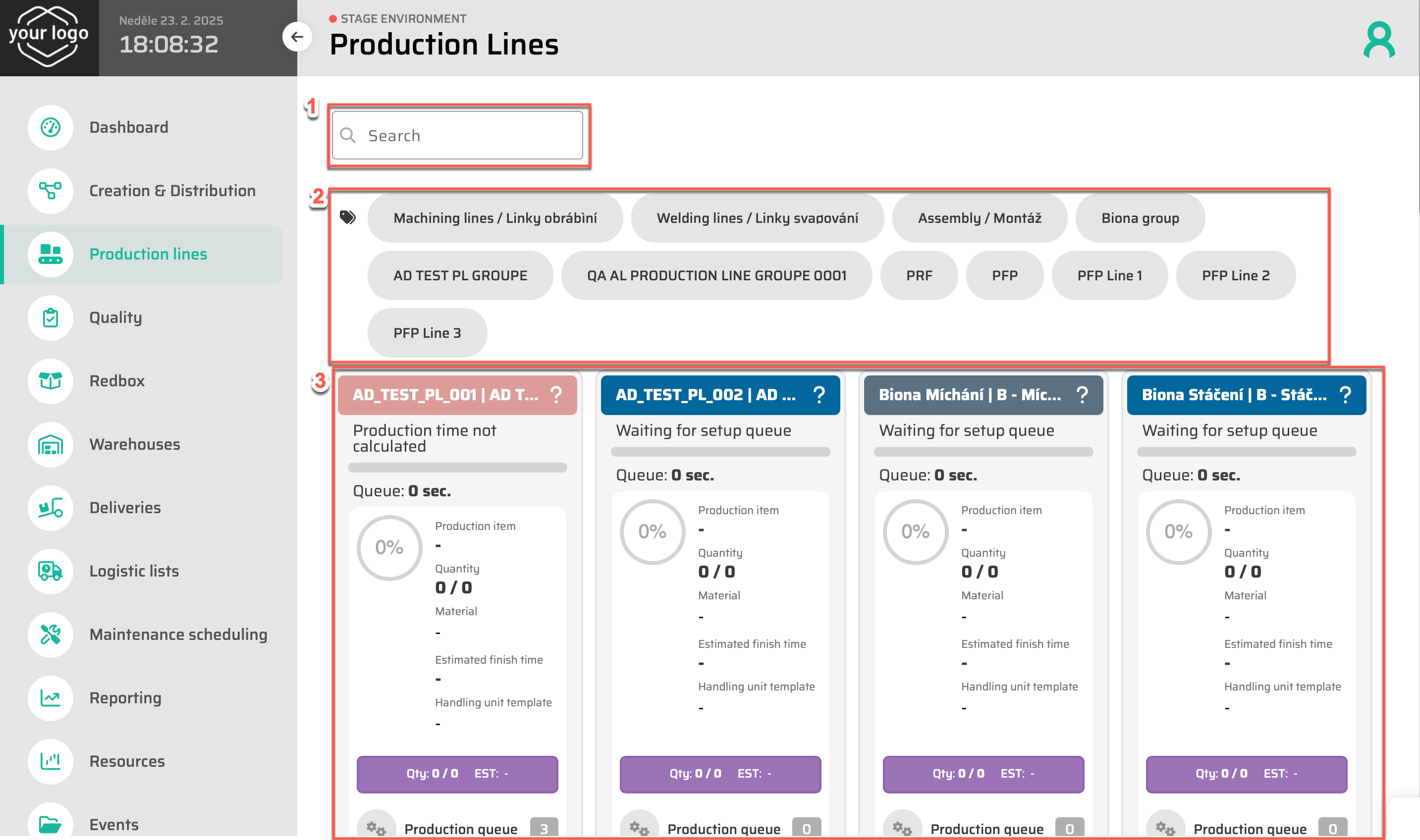

A list of all production lines is displayed in this tab.

1. Full-text search in the top right corner. The search engine ranks the search results based on their relevance to the query, which means, the full-text search works by breaking down the text into individual words or terms and then searching in the database to find the most valid, relevant match in the order it was searched for and displays the list of data in the order with the most of the accordance. In the database full-text search searches by three kinds of data - Title, Code, and Alternative code.

2. A production line group is a collection of production lines that are organized and managed together as a cohesive unit.

3. Production lines are displayed in the form of a box - they must meet the following criteria:
   a. Production line has to be active.
   b. Logged user is connected to this production line.
   c. There is at least one production item with material which can be produced on this production line (production time has to be set and this connection has to be active).

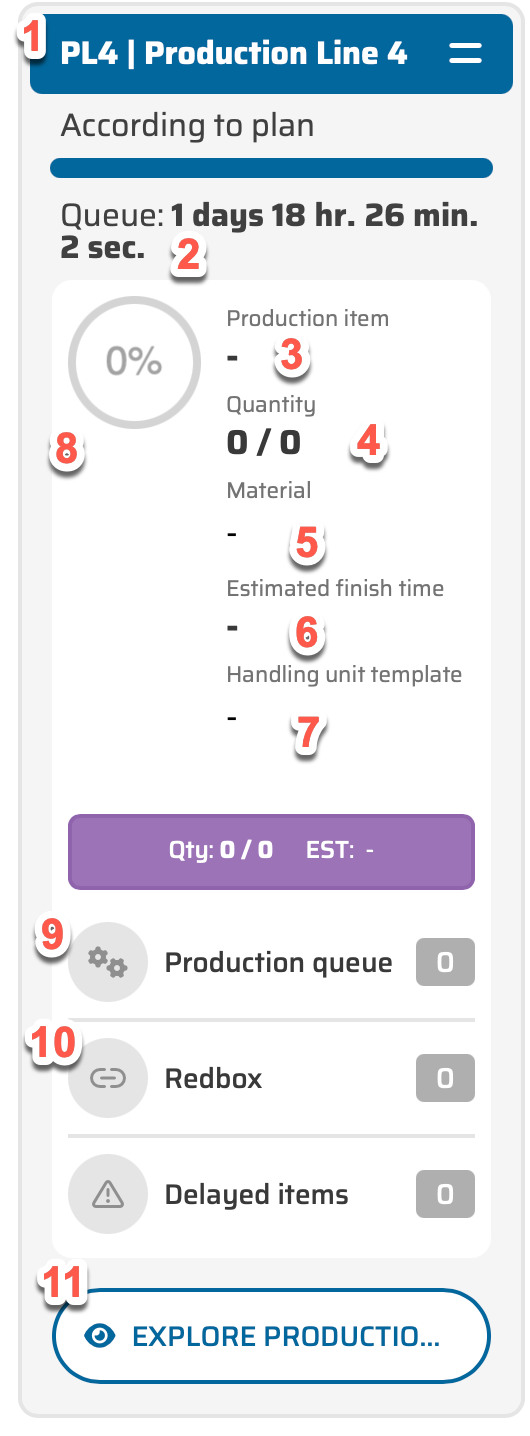

Preview of individual production lines displays information such as:

1. Name of the line
   - status: a. according to plan
   b. delayed
   c. Waiting for setup queue

2. Queue

3. Production item number

4. Quantity

5. Material title

6. Estimated finish time

7. Handling unit template

8. Progress bar for items in production

9. Information about the production queue

10. Number of items in Redbox

11. Automatic redirection to production line planning.

Indicators of the line meaning:

:Indikátor4PL: The line produces according to plan.

:Indikátor3PL: There is no queue on the line.

:Indikátor1PL: The line is producing faster than expected.

:Indikátor2PL: The line is delayed.

Production lines groups
If you click on a specific link group, you will see this option :GroupShedule: it offers us a plan of production lines in this group side by side → You are automatically redirected to the Resources section:
