Objects
Objects, in the context of a factory cockpit, typically refer to the various elements or components that are monitored and managed within the factory environment. These objects can include physical assets, data sources, systems, and processes that contribute to the overall operations and performance of the factory.

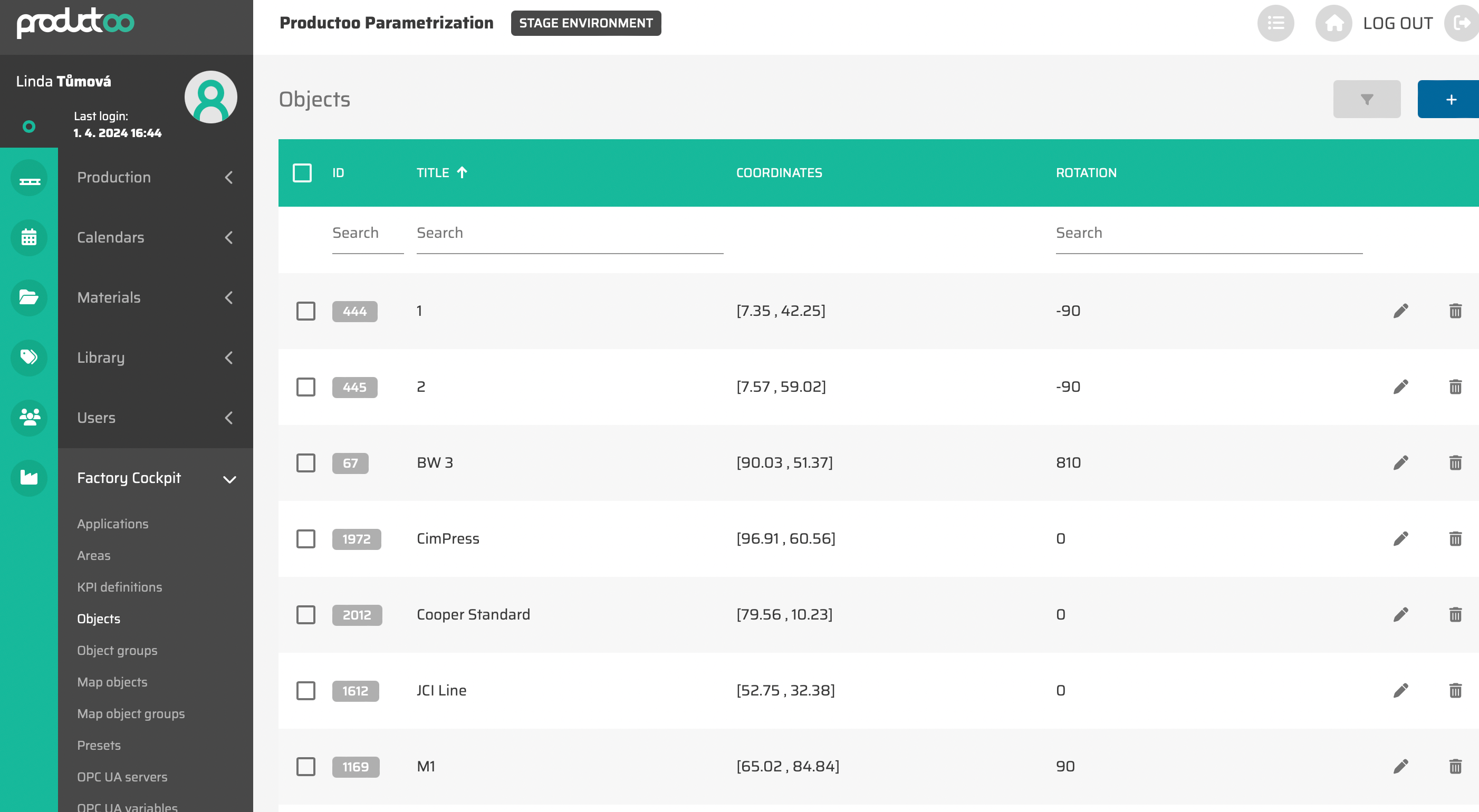

This tab shows all the Objects created within the P4 application and allows us to create, edit, or delete the Objects. The list of Objects can be filtered by all shown columns, which means by:
ID
Title
Coordinates
Rotation
From the operational point of view, it is possible to:
create new Objects via :create: a button in the top right corner of the page (this possibility will show empty Objects on the detailed settings page).
edit existing Objects via
a button that will appear after moving the cursor to the Objects you want to edit (this possibility will show Objects detailed settings page with saved data).delete a single existing Object via
button which will appear after moving the cursor to the Object you want to editdelete multiple Objects via choosing these (via clicking on the checkbox at the beginning of each Object) and then clicking on the
button which will appear in the top right corner
