Areas

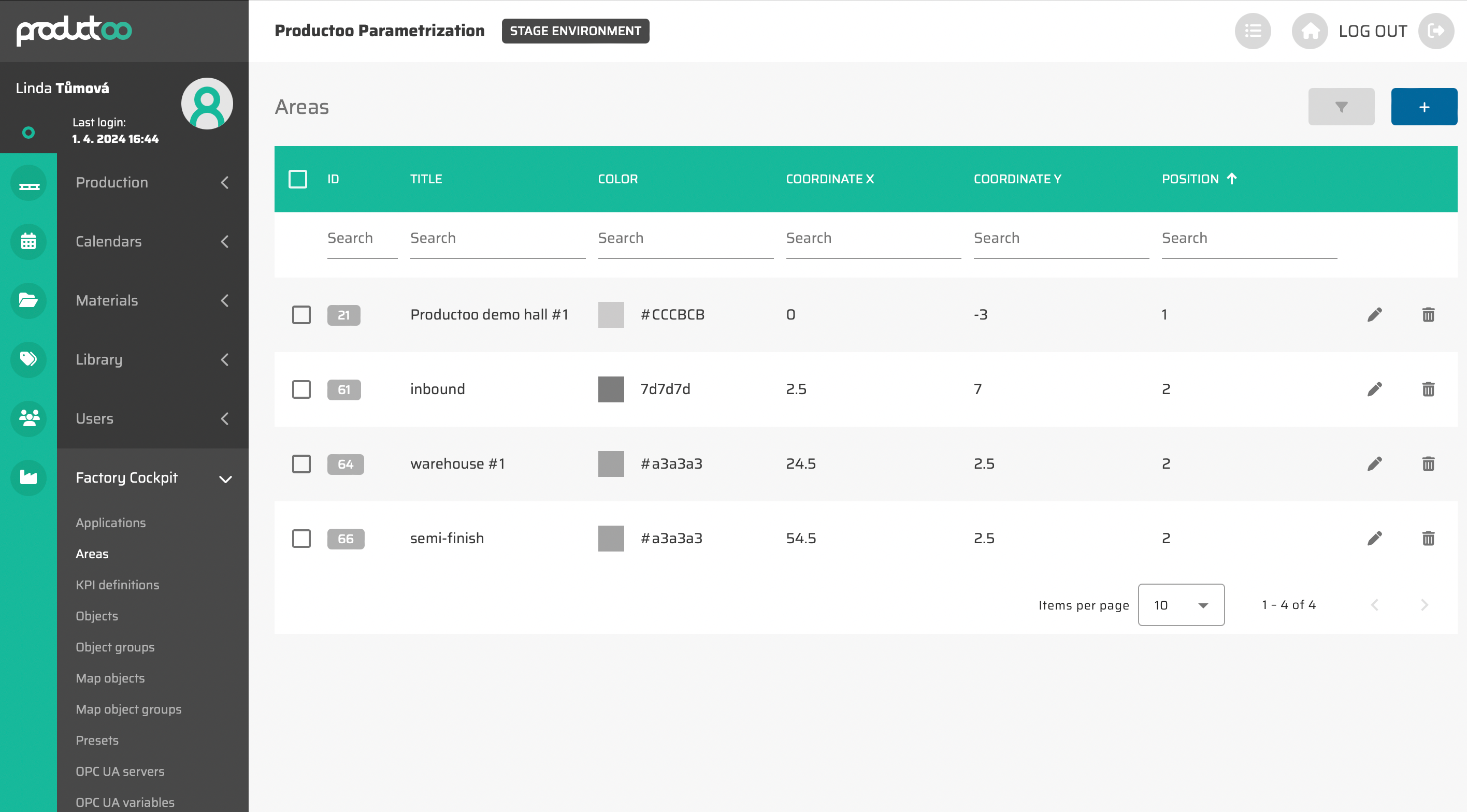

This tab shows all the Areas created within the P4 application and allows us to create, edit, or delete the Areas. The list of Areas can be filtered by all shown columns, which means by:

• ID

• Title

• Color

• Title coordinate X

• Title coordinate Y

• Position

From the operational point of view, it is possible to:

• create new Areas via :create: a button in the top right corner of the page (this possibility will show empty Areas on the detailed settings page).

• edit existing Areas via a button that will appear after moving the cursor to the Areas you want to edit (this possibility will show Areas detailed settings page with saved data).

• delete a single existing Area via button which will appear after moving the cursor to the Area you want to edit

• delete multiple Areas via choosing these (via clicking on the checkbox at the beginning of each Area) and then clicking on the button which will appear in the top right corner
