SV - definition - Redbox

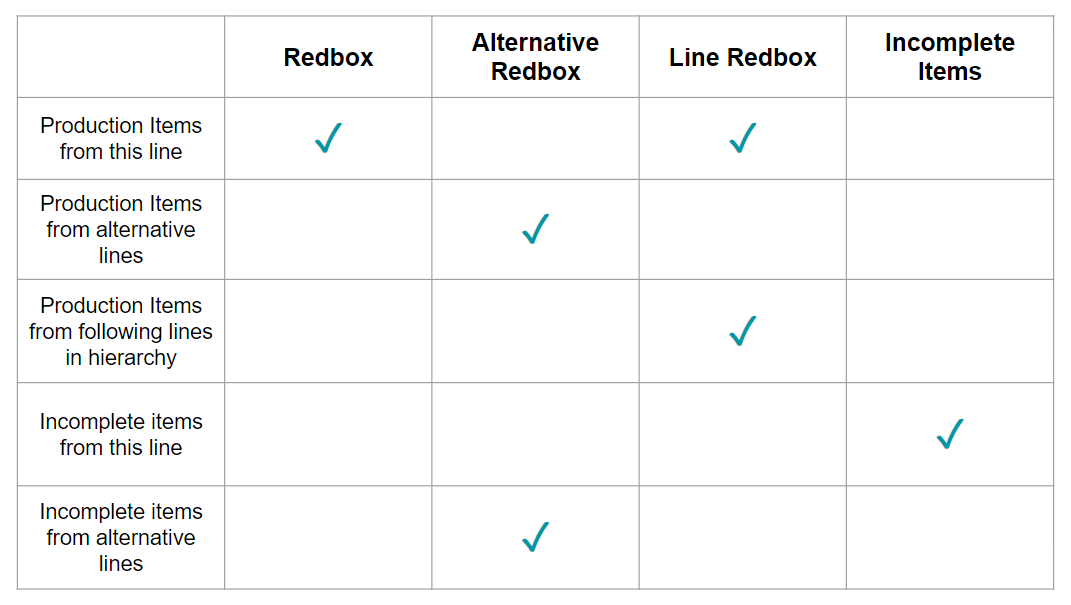

Redbox type filters

Redbox Type	Entity:property	Note
Redbox (standard)	Status:name	`InRedbox`
Redbox (standard)	ProductionItem:Material:id	Shopfloor view setting: `queueFilterMaterialIds`
Redbox (standard)	ProductionItem:Material:id	Material:ProductionLine = `producibleMaterials`
Redbox (standard)	ProductionItem:Material:MaterialGroup:id	Shopfloor view setting: `queueFilterMatGroupIds`
Redbox (standard)	ProductionLine:id	Shopfloor view:ProductionLine.id
Redbox (standard)	ReasonCode:id	!= GlobalSettings.`idReasonCodeIncomplete` - if set, then it is added to filter
Alternative Redbox	Status:name	`InRedbox`
Alternative Redbox	ProductionItem:Material:id	Shopfloor view setting: `queueFilterMaterialIds`
Alternative Redbox	ProductionItem:Material:id	Material:ProductionLine = `producibleMaterials`
Alternative Redbox	ProductionItem:Material:MaterialGroup:id	Shopfloor view setting: `queueFilterMatGroupIds`
Alternative Redbox	ProductionLine:id	!= Shopfloor view:ProductionLine.id
Line Redbox (long line)	Status:name	`InRedbox`
Line Redbox (long line)	ProductionItem:Material:id:id	Shopfloor view setting: `queueFilterMaterialIds`
Line Redbox (long line)	ProductionItem:Material	Material:ProductionLine = `producibleMaterials`
Line Redbox (long line)	ProductionItem:Material:MaterialGroup:id	Shopfloor view setting: `queueFilterMatGroupIds`
Line Redbox (long line)	ProductionLine:id	Shopfloor view:ProductionLine → following lines including current
Incomplete Items	Status:name	`InRedbox`
Incomplete Items	ProductionItem:Material:id	Shopfloor view setting: `queueFilterMaterialIds`
Incomplete Items	ProductionItem:Material:id	Material:ProductionLine = `producibleMaterials`
Incomplete Items	ProductionItem:Material:MaterialGroup:id	Shopfloor view setting: `queueFilterMatGroupIds`
Incomplete Items	ProductionLine:id	Shopfloor view:ProductionLine.id
Incomplete Items	ReasonCode:id	GlobalSettings.`idReasonCodeIncomplete` - if set, then it is added to filter

Sort:

Entity
Default	`timeRedboxInserted:desc`
IF: `ProductionItemsRedboxSortingOptions.ScheduledDeliveryTime`	`scheduledTimeDelivery:asc`
IF: `ProductionItemsRedboxSortingOptions.InsertedTime`	`timeRedboxInserted:desc`

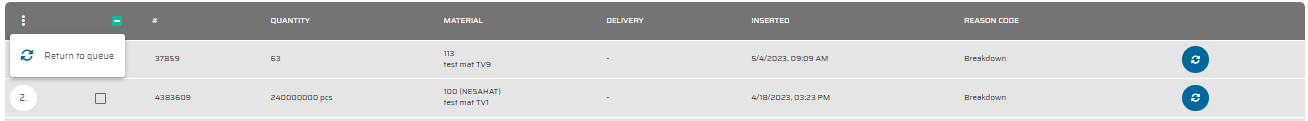

Queue columns

responsible parametrization	Comment	Data
at least one mass operation option is activated	`['select']: { visible: true },`	// Checkbox
at least one mass operation option is activated at least one item selected		-
Return to queue SV/Allow mass operation/“Redbox” option activated Start Production SV/Allow mass operation/”Start production from Redbox” option activated SV/“Visible start production button” activated User has “Allow mass production” activated	Return to Queue `ShopfloorView.massOperations.redbox` Start production `ShopfloorView.massOperations.startProductionFromRedbox` `ShopfloorView.visibleStartProductionButton` `User.allowMassProduction`	-
-
-
- Bold: SV/”Increase material visibility” active	Bold: `increasedMatNumVisibility`
-
-
-
-	`Always visible`
SV/“Allow start production in queue” activated SV/“Visible start production button” activated	`ShopfloorView.allowStartProductionInQueue` `ShopfloorView.visibleStartProductionBtn`

Fulltext search

	responsible parametrization	Comment
Fulltext filter	-	`Always visible`

Changeovers

responsible parametrization	Comment	Data
SV/”Group production items in queue” active	`ShopfloorView.groupedPi`	-
-	`Always visible`	Material: `{{row.item.toMaterial.primaryIndicator}}` \| `{{row.item.toMaterial.secondaryIndicator}}`
-	`Always visible`	-
SV/“Allow start production in queue” activated SV/“Visible start production button” activated	`ShopfloorView.allowStartProductionInQueue` `ShopfloorView.visibleStartProductionBtn`
