SV - definition - Production queue (Repackaging)

Queue

id

production queue for selected line

QueueItemType

name

ProductionItem, Changeover

QueueItem:ProductionItem:Material

id

Shopfloor view setting: queueFilterMaterialIds

QueueItem:ProductionItem:Material:MaterialGroup

id

Shopfloor view setting: queueFilterMatGroupIds

LogisticListFeedItem:Status

name

Feeded, Created, PartiallyFeeded

// pageSize - if enabled by ShopfloorView.queueLength

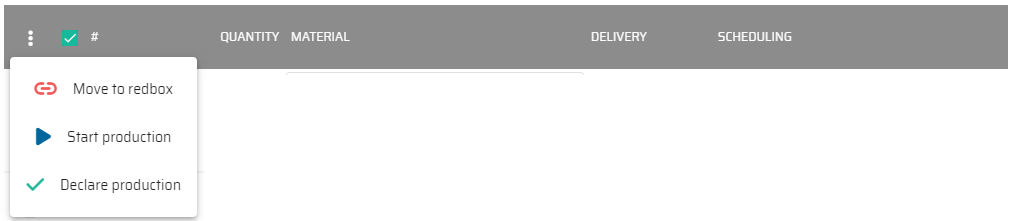

• at least one mass operation option is activated

['select']: { visible: true },

// Checkbox

• at least one mass operation option is activated

• at least one item selected

-

Move to Redbox

• SV/Allow mass operation/“Redbox” option activated

Start production

• SV/Allow mass operation/“Start production” activated

• SV/“Visible start production button” activated

• User has “Allow mass production” activated

Declare production

• SV/Allow mass operation/“Declaration” option activated

• User/“Allow mass production” activated

Move to Redbox

• ShopfloorView.massOperations.redbox

Start production

• ShopfloorView.massOperations.startProduction

• ShopfloorView.visibleStartProductionButton

• User.allowMassProduction

Declare production

• ShopfloorView.massOperations.declaration

• User.allowMassProduction

-

SV/“Visible comluns” multiselect:

• “Item number” option selected

ShopfloorView.visibleButtons.itemNumber

{{ row.item.number }}

If not empty: row.item.comment in tooltip with icon

SV/“Visible comluns” multiselect:

• “Quantity” option selected

ShopfloorView.visibleButtons.quantity

If >0: {{ row.item.quantityFinished }}/

{{ row.item.quantity }} {{ row.item.material.unit }}

SV/“Visible comluns” multiselect:

• “Material” option selected

ShopfloorView.visibleButtons.material

{{ row.item.material.primaryIndicator }}

{{ row.item.material.secondaryIndicator }}

SV/“Visible comluns” multiselect:

• “Delivery” option selected

ShopfloorView.visibleButtons.delivery

{{ row.item.outboundDelivery?.number ?? '-' }}

SV/“Visible comluns” multiselect:

• “Truck image” option selected

ShopfloorView.visibleButtons.truckImage

{{ row.item.outboundDelivery?.truckImage?.title ?? '-' }}

SV/”Visible comluns” multiselect:

• “Scheduling” option selected

ShopfloorView.visibleButtons.scheduling

EST: {{ row.estimatedFinish }}

freezeTimeStart || freezeTimeFinish => “snowflake” icon

If exists: {{ row.item.truckRoute.timeFrom }}

SV/“Move item to first position”

ShopfloorView.moveItemToFirstPosition

-

SV/“Allow start production in queue” activated

SV/“Visible start production button” activated

ShopfloorView.allowStartProductionInQueue

ShopfloorView.visibleStartProductionBtn

-

Always visible (without active condition)

-

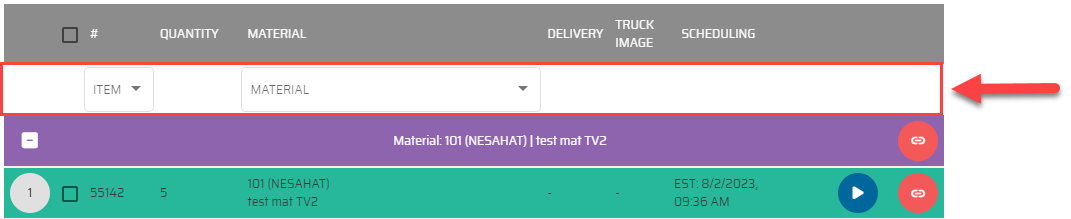

Filter bar

SV/”Enable queue table filter”

ShopfloorView.enableSearching

Fulltext filter

-

Always visible

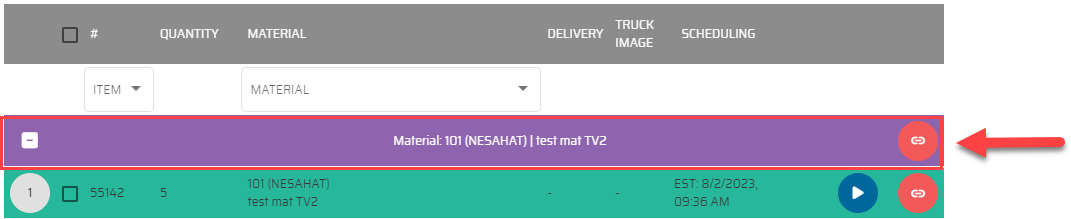

Collapse all changeovers

SV/”Group production items in queue” active

ShopfloorView.groupedPi

SV/”Group production items in queue” active

ShopfloorView.groupedPi

-

-

Always visible

Material: {{row.item.toMaterial.primaryIndicator}} | {{row.item.toMaterial.secondaryIndicator}}

SV/Allow mass operation/“Redbox” option activated

ShopfloorView.massOperations.redbox

-

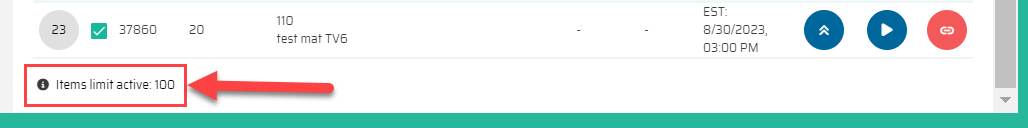

Items limit active

SV/”Queue length” other than 0

ShopfloorView.queueLength
