Logistic run views

Logistic run views, also known as logistics run views, are specific visual representations or displays within a logistics system or software that provide information and insights about the progress, status, and details of logistic runs. These views are designed to help logistics professionals and operators monitor and manage the movement of goods or resources from one location to another.

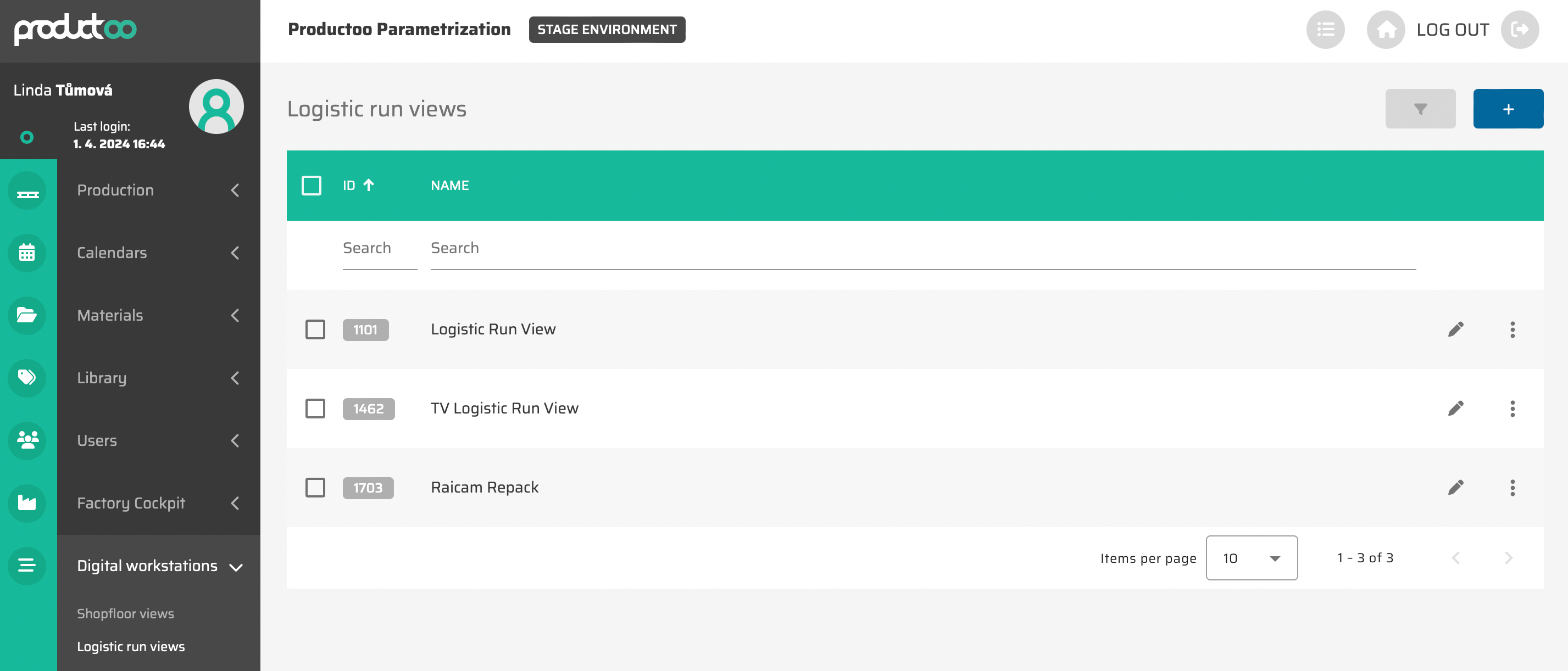

This tab shows all the Logistic run views created within the P4 application and allows us to either create, edit, or delete the Logistic run views. The list of Logistic run views can be filtered by all shown columns, which means by:

• ID

• Name

From the operational point of view, it is possible to

• create new Logistic run views via :create: button in the top right corner of the page (this possibility will show empty Logistic run views detailed settings page).

• edit existing Logistic run views via button which will appear after moving cursor to the line you want to edit (this possibility will show Logistic run views detailed settings page with saved data).

• duplicate existing Logistic Run View via button which will appear after moving cursor to the view you want to duplicate. This will create the duplicate of this Logistic Run View as it is only with different ID.

• delete single existing Logistic run view via button which will appear after moving cursor to the view you want to edit

• delete multiple Logistic run views via choosing these (via clicking on the checkbox in the beginning of each view) and then clicking on the button which will appear in the top right corner

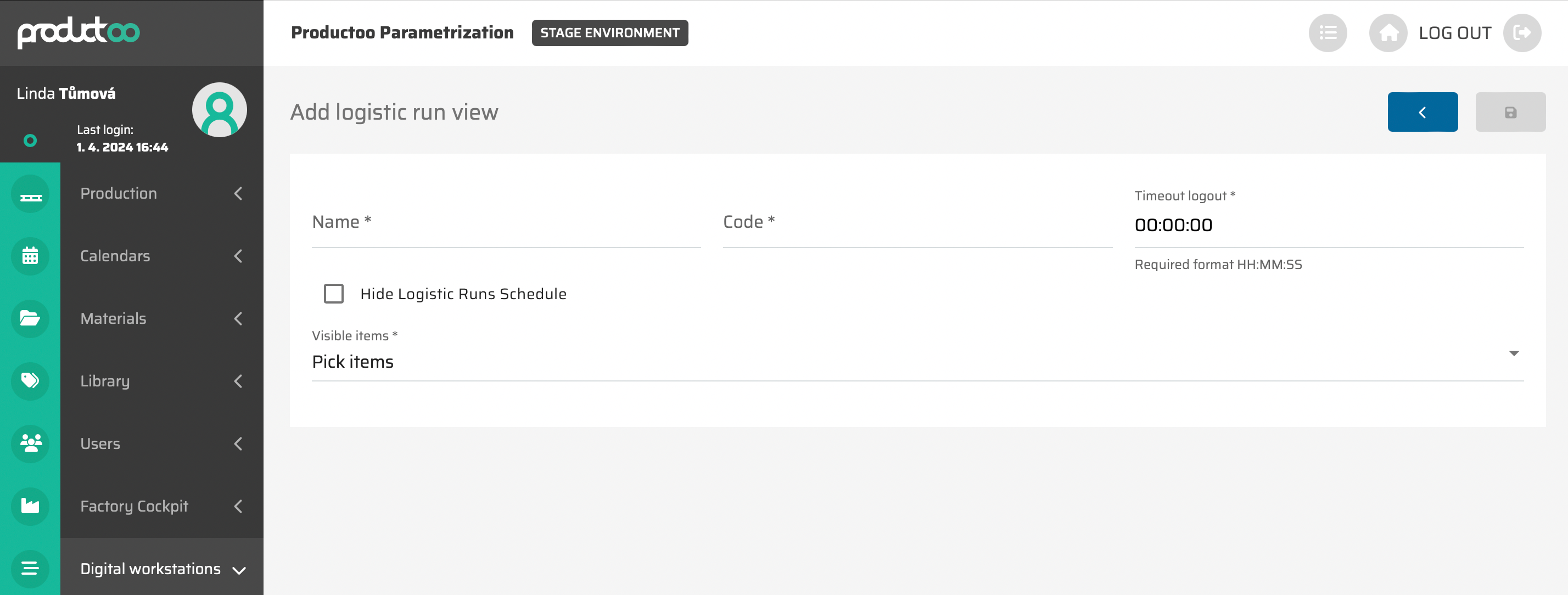

Logistic run views detail

In the Logistic run views detail screen, we are able to edit already crated Logistic run views or fill up all information needed to create a new one.

In the below table there are all parameters of Logistic run views with its description.
