Production views

The Production Views screen is a customizable dashboard that provides an overview of the current production status. The main advantage of this screen is that each production department can tailor it according to its specific needs.

Users can select specific production lines to display on the screen and customize the information that is shown, such as production queues, red boxes, batch-building lines, and Production Items in the distribution table. Additionally, users can get a general overview of selected lines.

In summary, the Production Views screen is a powerful tool for visualizing production status and tracking progress in real-time.

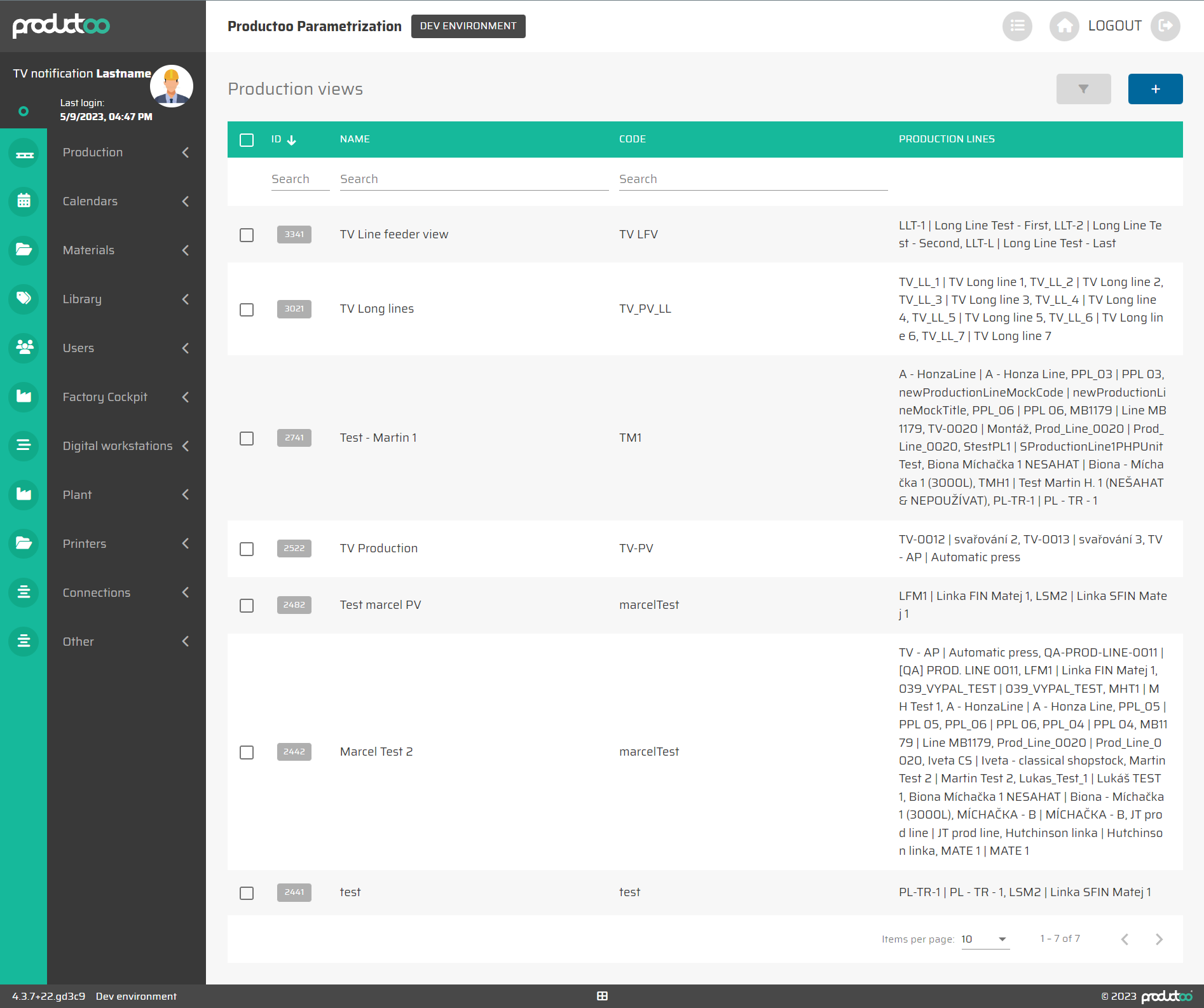

This tab shows all the Production Views created within the P4 application and allows us to either create, edit, or delete the Production view. The list of Production views can be filtered by all shown columns, which means by:

• ID

• Name

• Code

• Production lines

From the operational point of view, it is possible to

• create new Production view via :create: button in the top right corner of the page (this possibility will show empty Production view detailed settings page).

• edit existing Production view via :edit: button which will appear after moving cursor to the line you want to edit (this possibility will show Production view detailed settings page with saved data).

• delete single existing Production view via :delete: button which will appear after moving cursor to the viewyou want to edit

• delete multiple Production views via choosing these (via clicking on the checkbox in the beginning of each view) and then clicking on the :delete: button which will appear in the top right corner

Production views detail

In the Production views detail screen, we are able to edit already crated Production views or fill up all information needed to create a new one.

In the below table there are all parameters of the Production view Settings with its description.
