Production Item Dialog
The production line preview is comprised of multiple tabs, each providing access to different information or functionality relevant to the production process. Access to these tabs can be customized on an individual basis, ensuring that each team member has access to the information and tools they need to perform their job effectively.

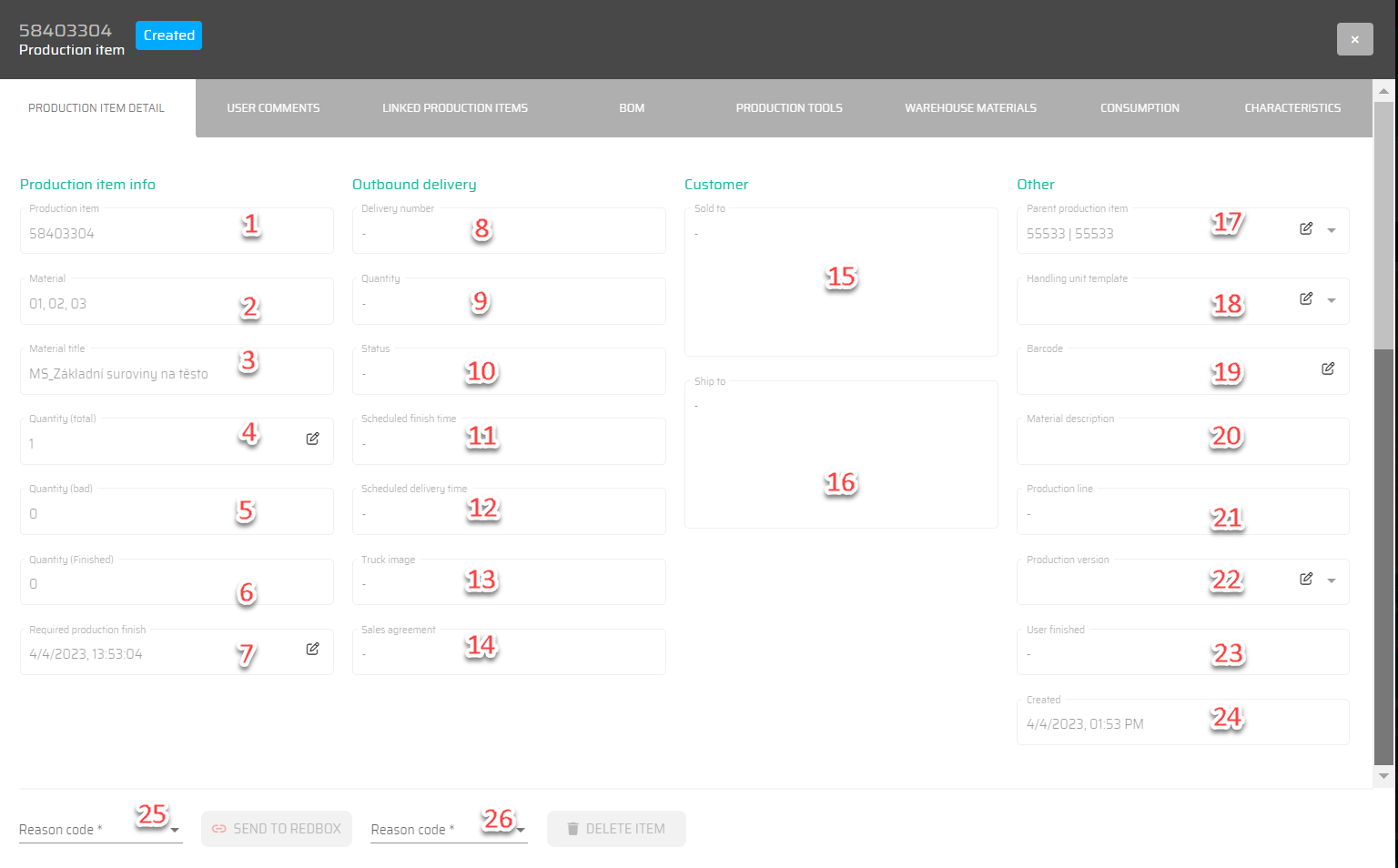

Production item info | Outbound delivery | Customer | Other |
|---|---|---|---|
|
10. Status | 15. Sold to | 17. Parent production item |
The button :Change: allows us to change the data.

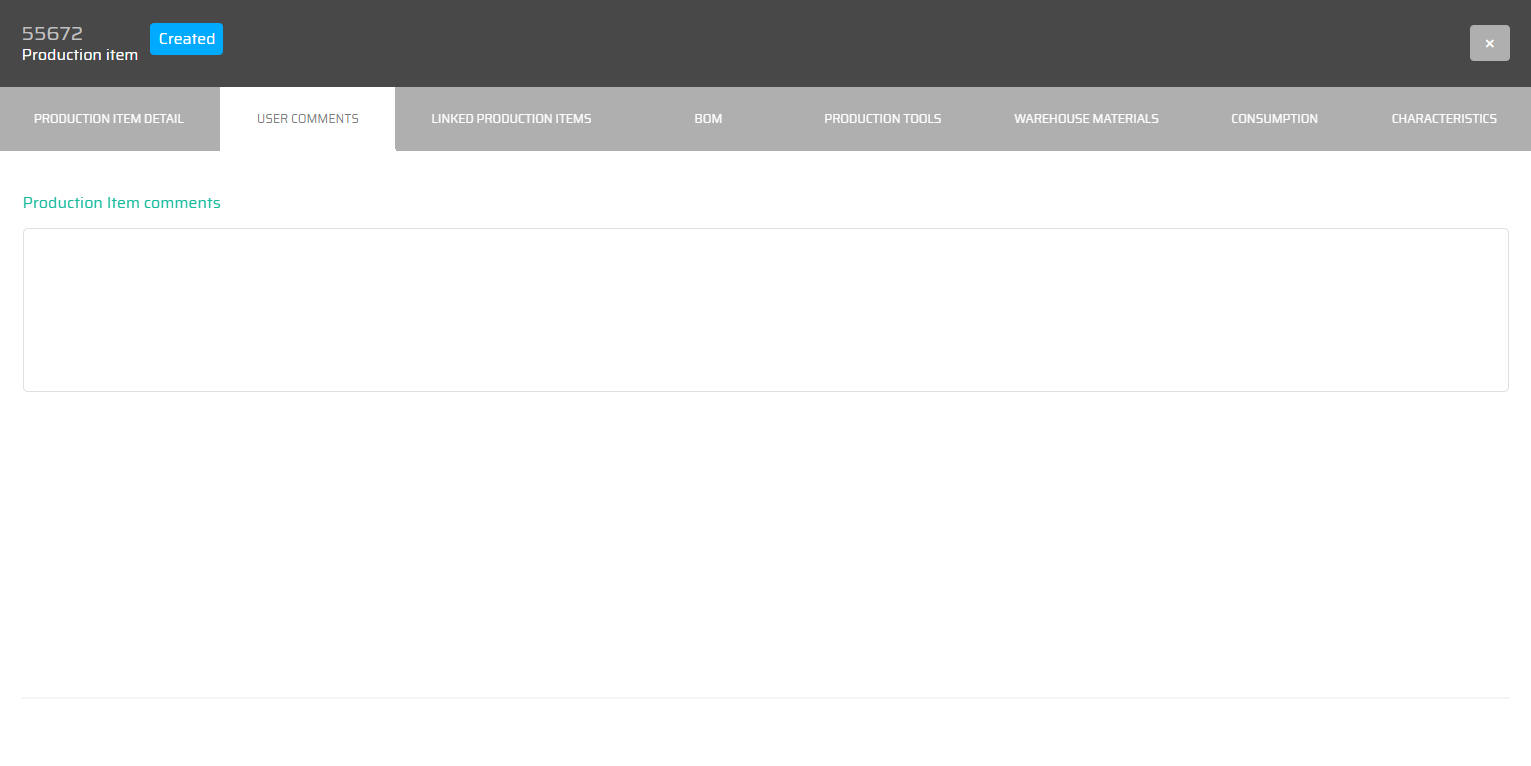

Provides a way for authorized users to add notes or feedback related to a specific production item. These comments can include information such as quality control results, production issues, or suggestions for improvement.

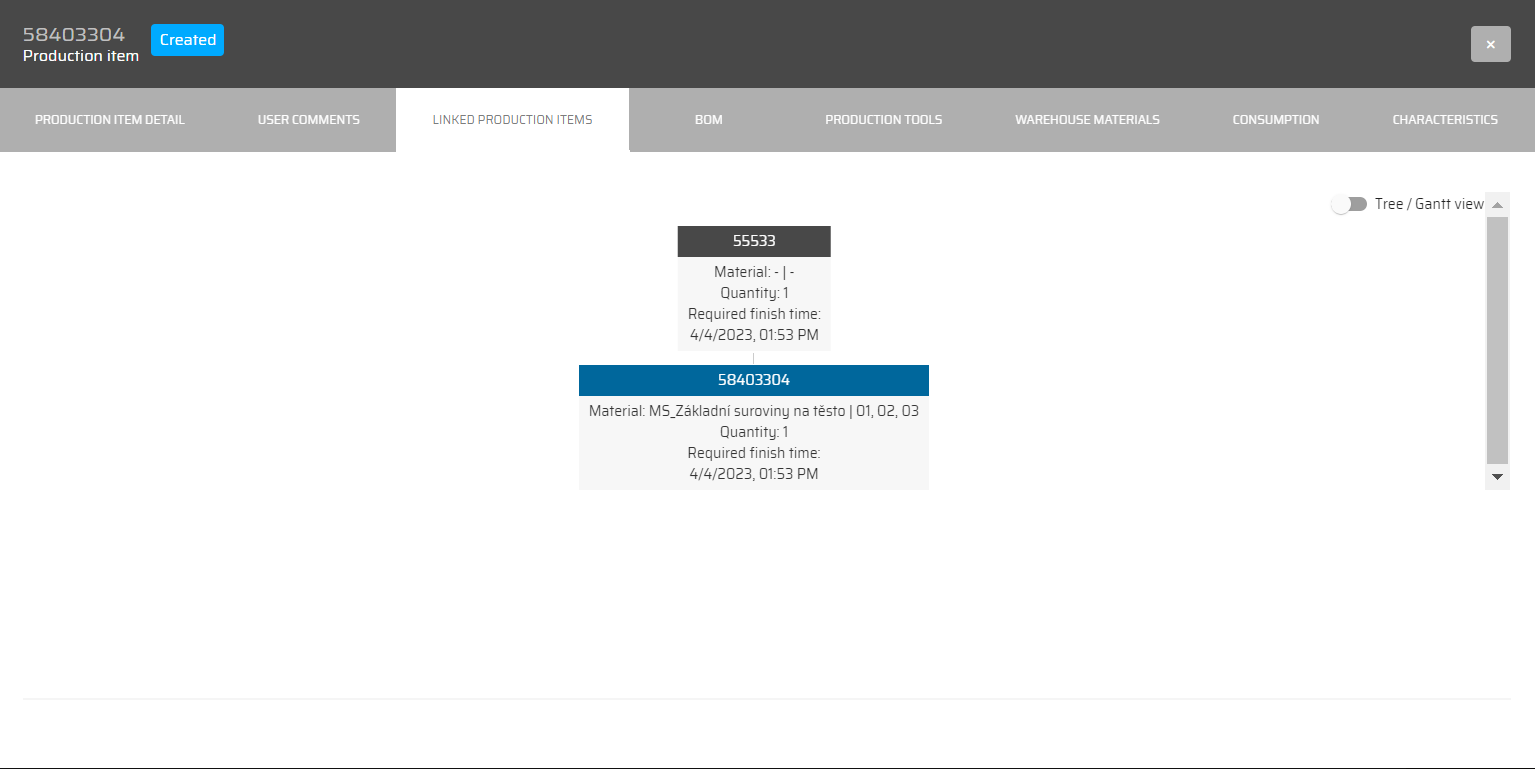

Production item that is associated or connected with another item in the production process:
In the tab BOM of the produciton item detail, we can view this tab by two ways. We can select these options in the selection bar 'Display option' by selection one of the two options:
Graph
Table

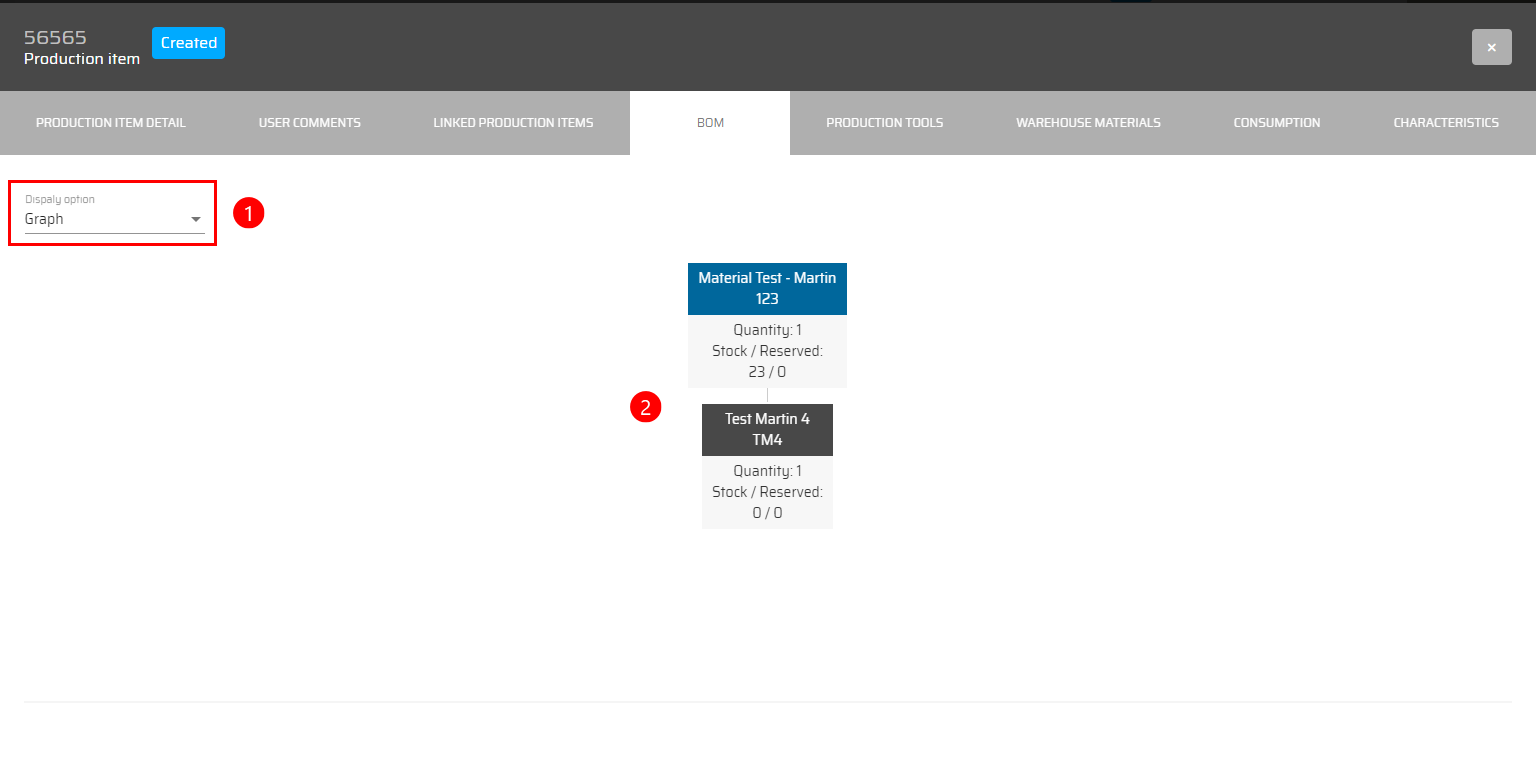

By selection ‘Graph’ we get this kidn of view of the BOM:
Information in Graph.
Specific materials

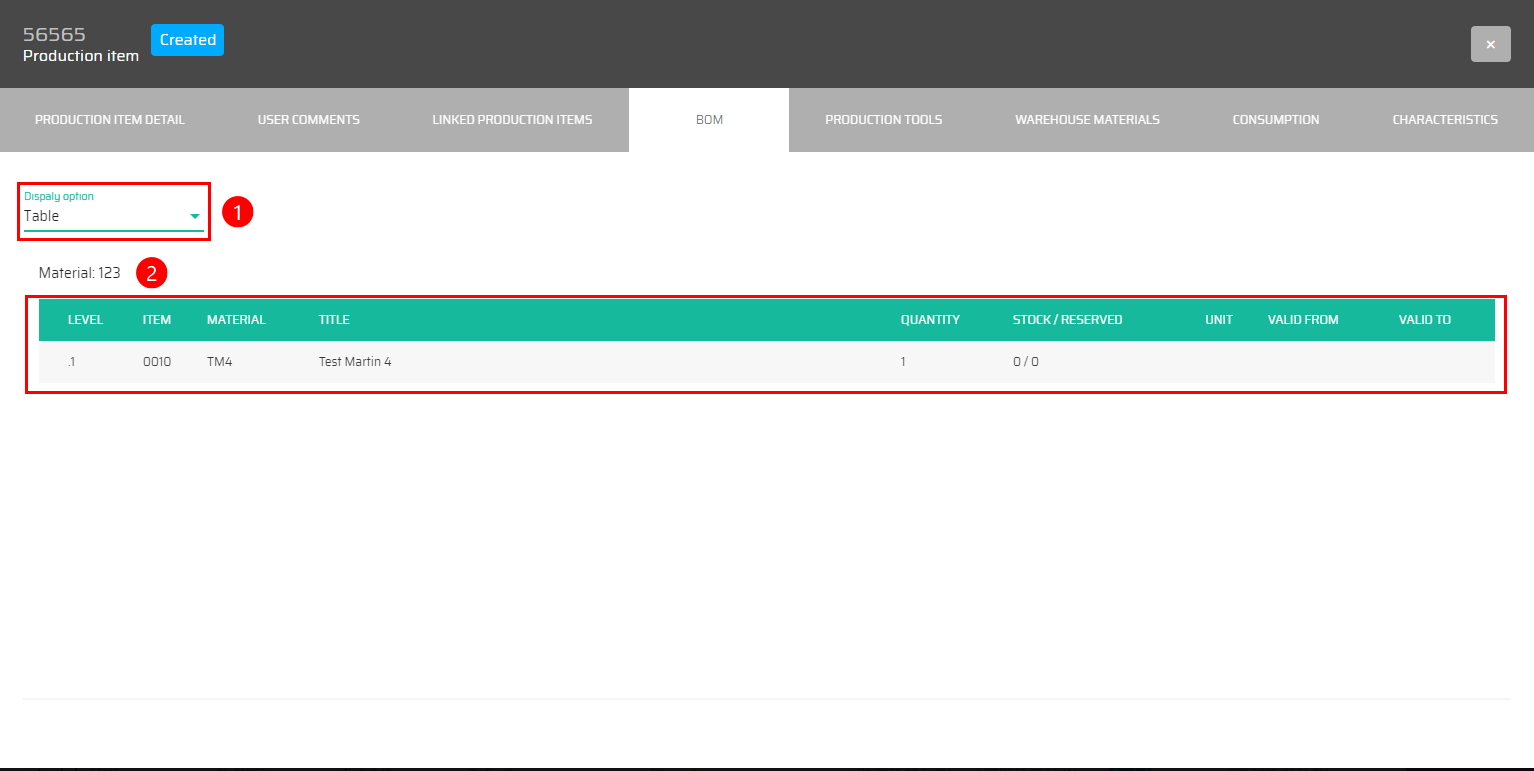

By selection ‘Table’ we get this kidn of view of the BOM:
Information in table
Specific materials

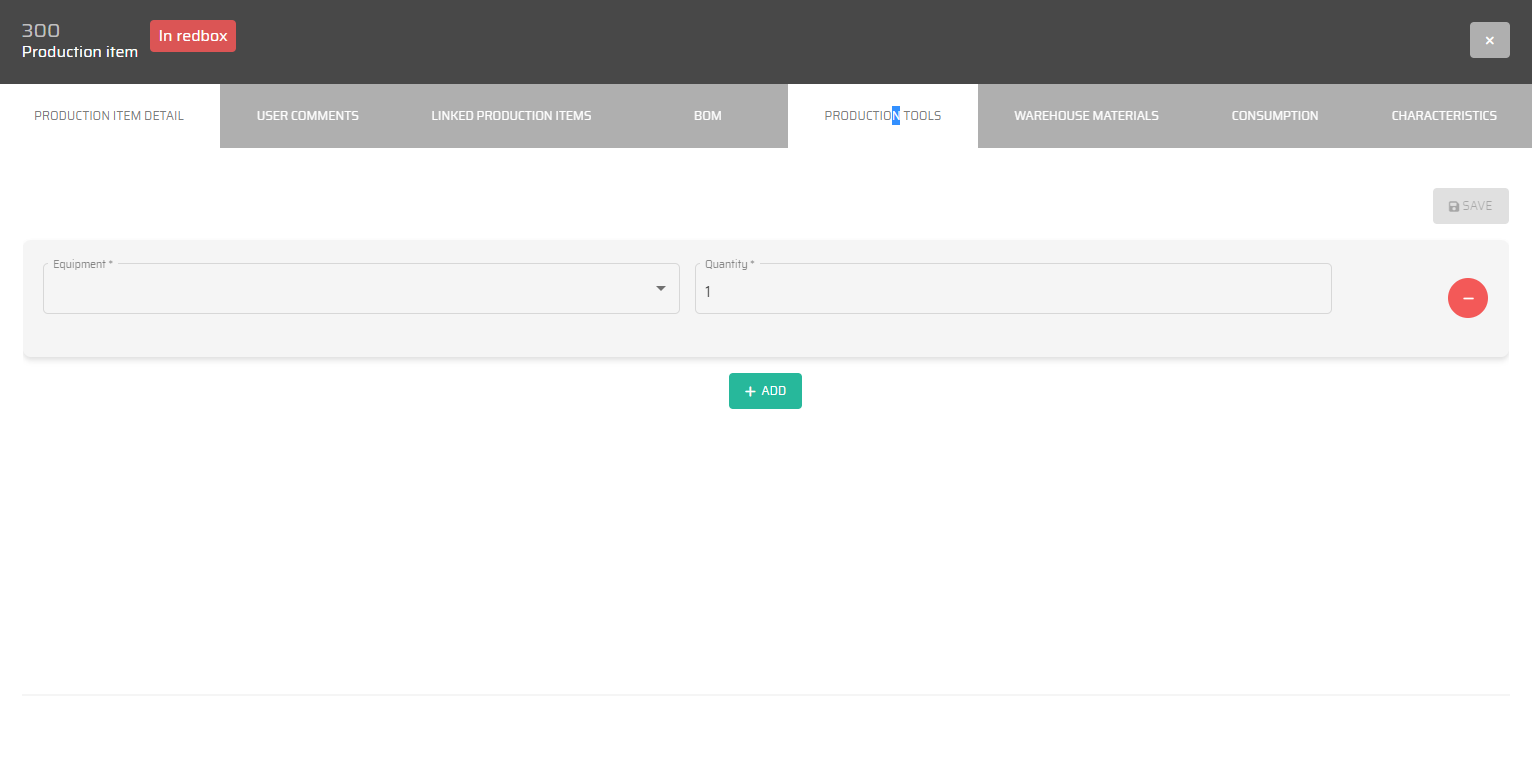

Operational Buttons:
:Add: - To add a new equipment
:minus_delete: - to delete a row with the equipment

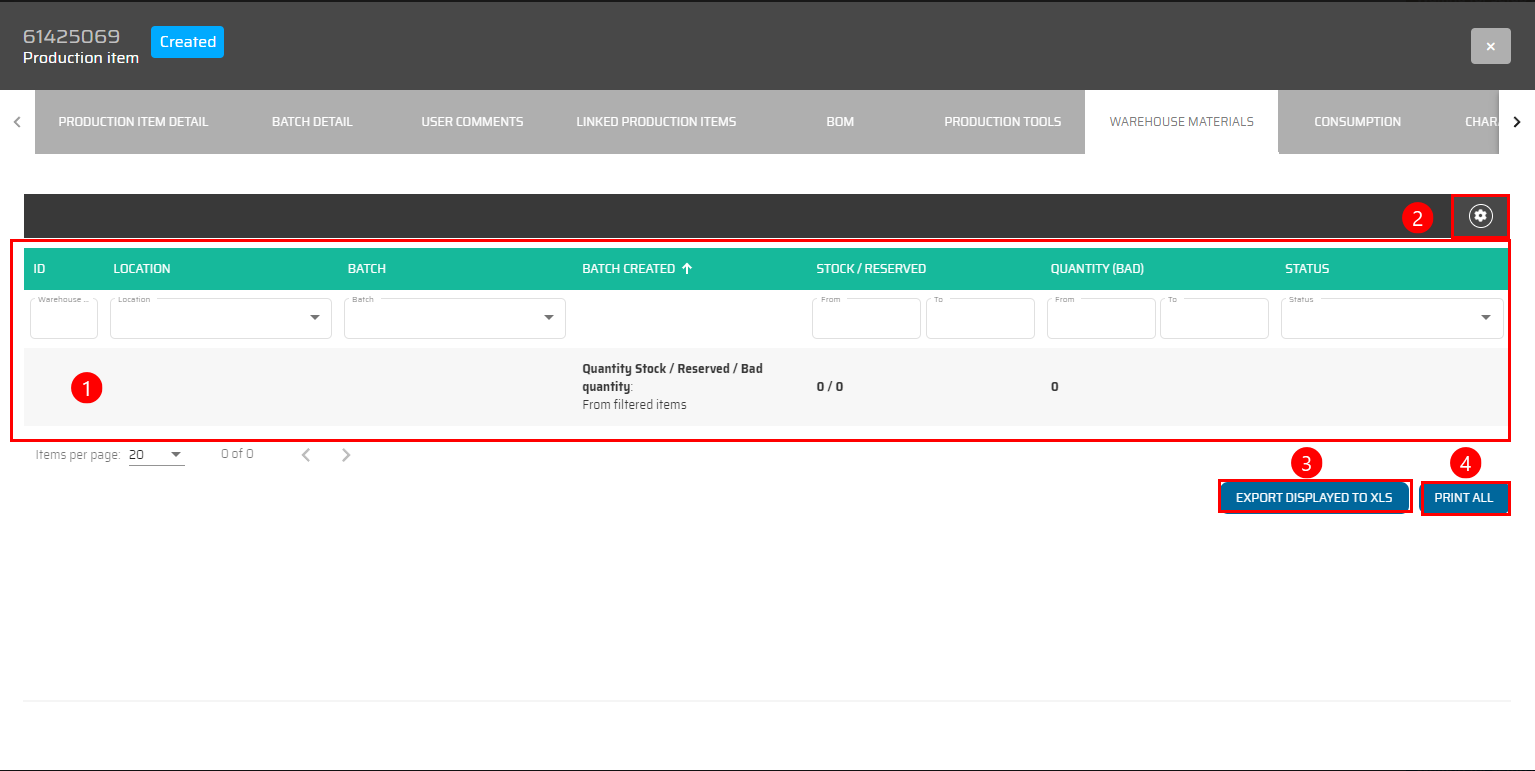

Warehouse material can be sorted by these data:
ID
Location
Batch
Batch created
Stock/reserved
quantity (bad)
Status
On the warehouse material detail we can see:
List of warehouse items.
The button :Customize_Table: opens the Layout for this data table.
With the button :Export: the software will generate an Excel file containing all the data that is currently being displayed on your screen. This can be useful if you need to analyze or manipulate the data in Excel or if you need to share the data with others who do not have access to the software you are using.
Print all data with the button :Printall:

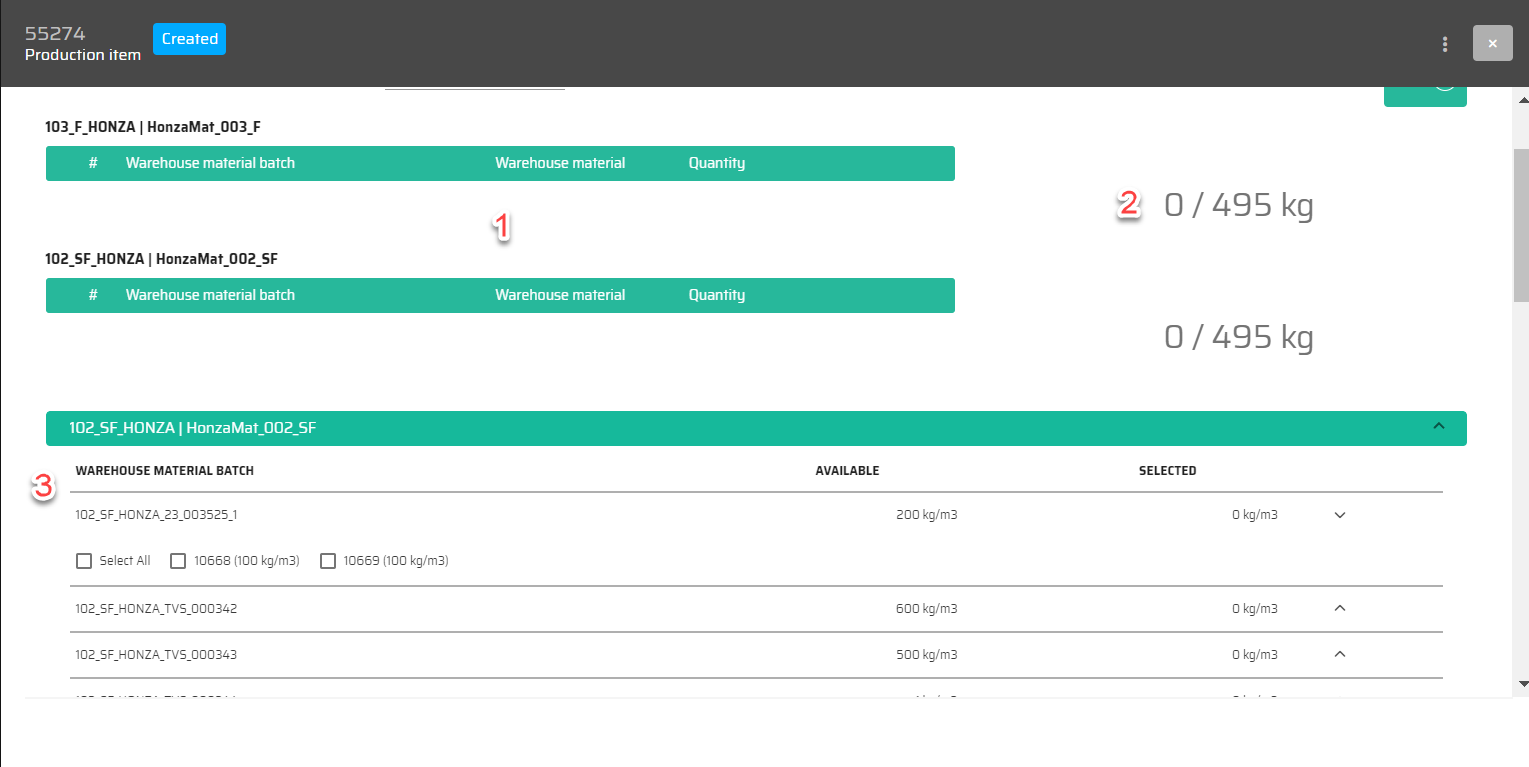

Consumption refers to the use or depletion of materials, components, or resources during the production process. It can refer to the amount of raw materials used to make a product, the energy consumed during production, or the time required for production. Understanding consumption is important for effective production planning and inventory management, as it helps to ensure that the necessary resources are available when needed and that waste is minimized.
Preferred items from BOM.
Number of pieces needed (based on the BOM).
Batch number.
When clicked, a list of stock items from which I can produce will be displayed.

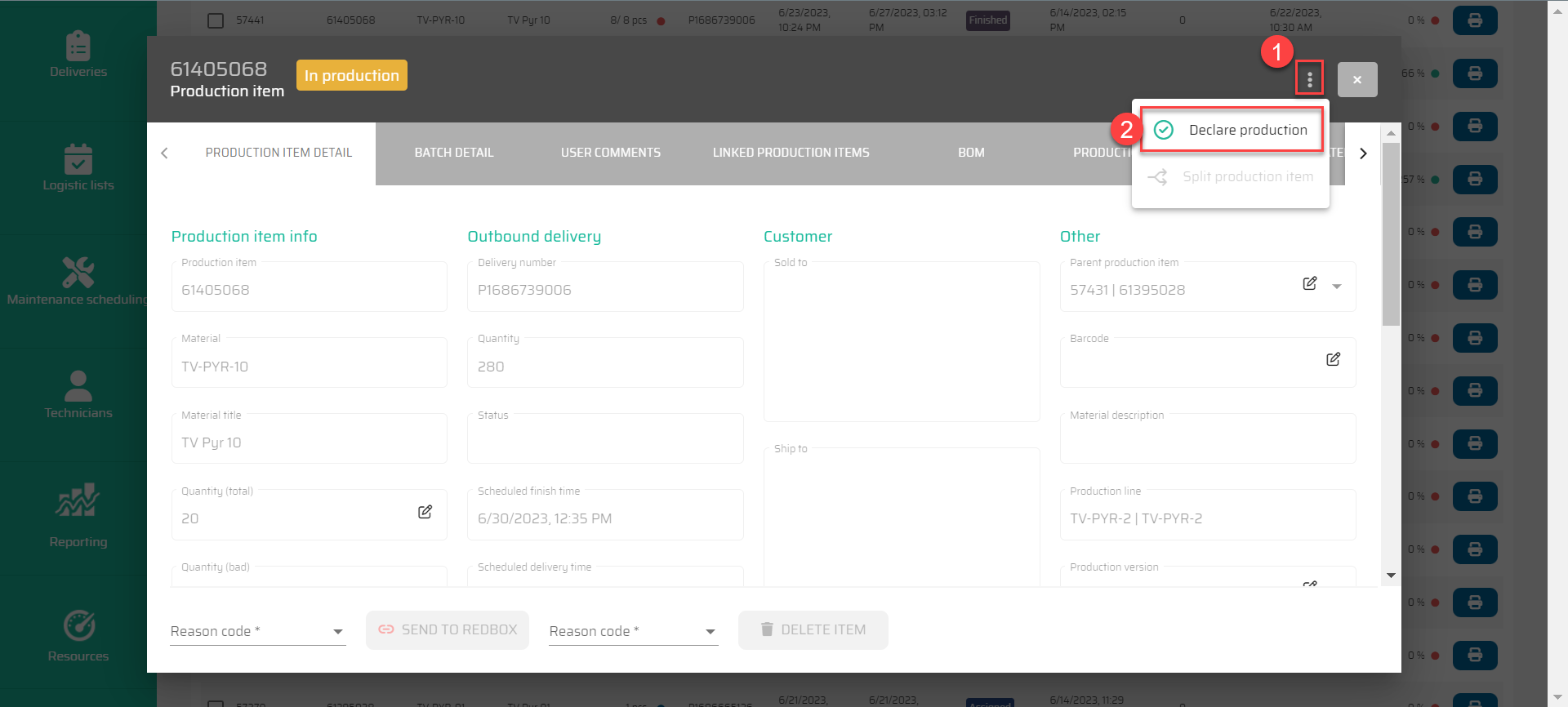

Declaration from planning module
If the parameter "Allow manual finish in planning module" is set in the settings of the production line where the given Production item is assigned, a menu will appear in the upper right corner of the dialog. Here it is possible to declare the production of this Production Item at the moment when its production has already started. A declaration made in this way will end production of the item in exactly the condition and quantity in which it is currently found. Therefore, if an incomplete quantity was declared, it is necessary to count on the fact that exactly such a quantity will be stored for the item without the possibility of reproducing it within this Production Item.

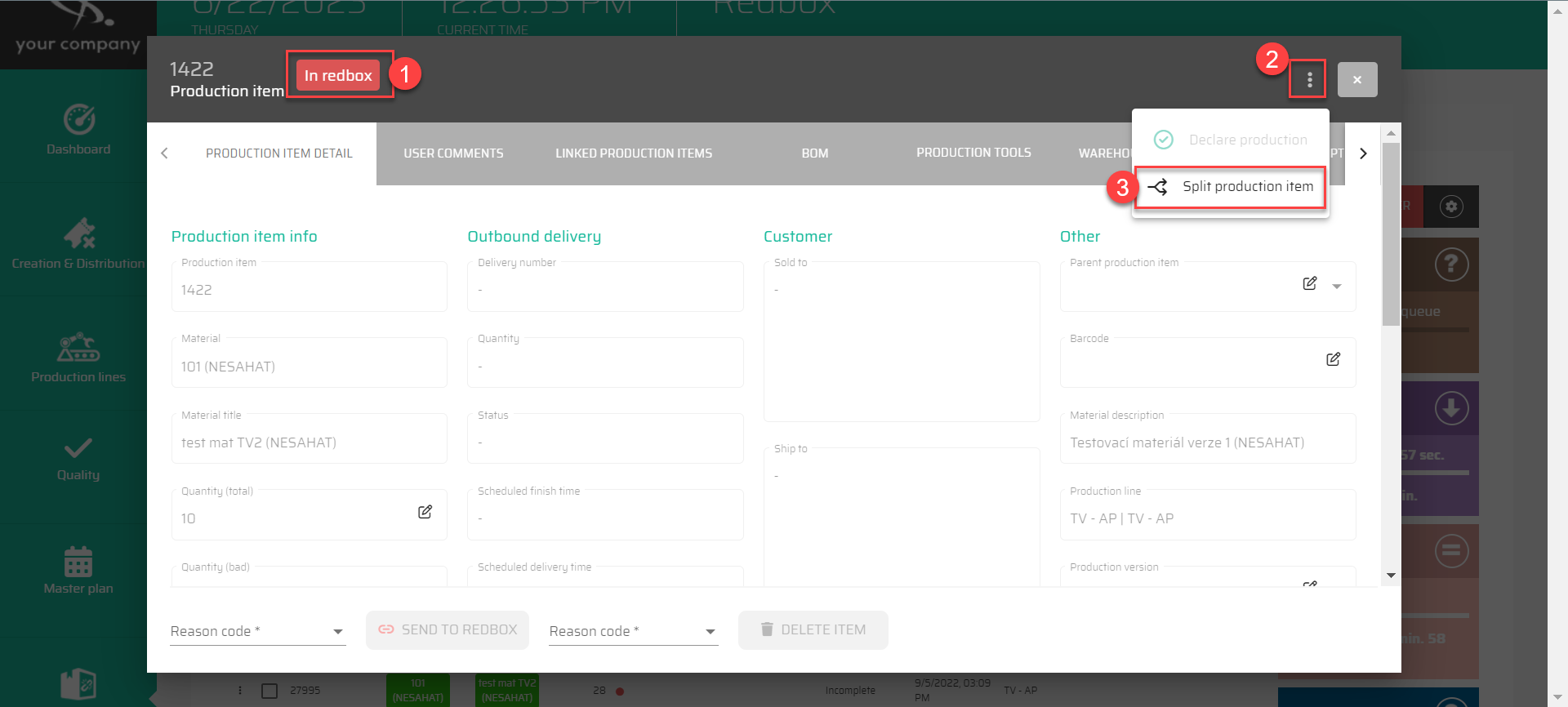

Split Production Item
If the Production Item is in Redbox (including Incomplete), a "Split Production Item" button will appear in the upper right corner of the dialog.
Pressing the button causes Production Item to divide into two separate Production Items and the following situations can occur:
A quantity has already been declared for the Production Item (most often when in Incomplete). In that case, the already declared quantity will be placed in one Production Item and its declaration will be made immediately - i.e. the declared quantity will be finished. The remaining (undeclared) quantity will be in the second PI and will still be in the redbox.
If no quantities have been declared yet, the Production Item will be split equally into 2 and both will still be in the redbox.
All properties of the Production Item are preserved, including the BOM. If this Production Item has linked sub-Production Items under it according to the BOM, these sub-items are also divided proportionally.
