Main setting - Objects

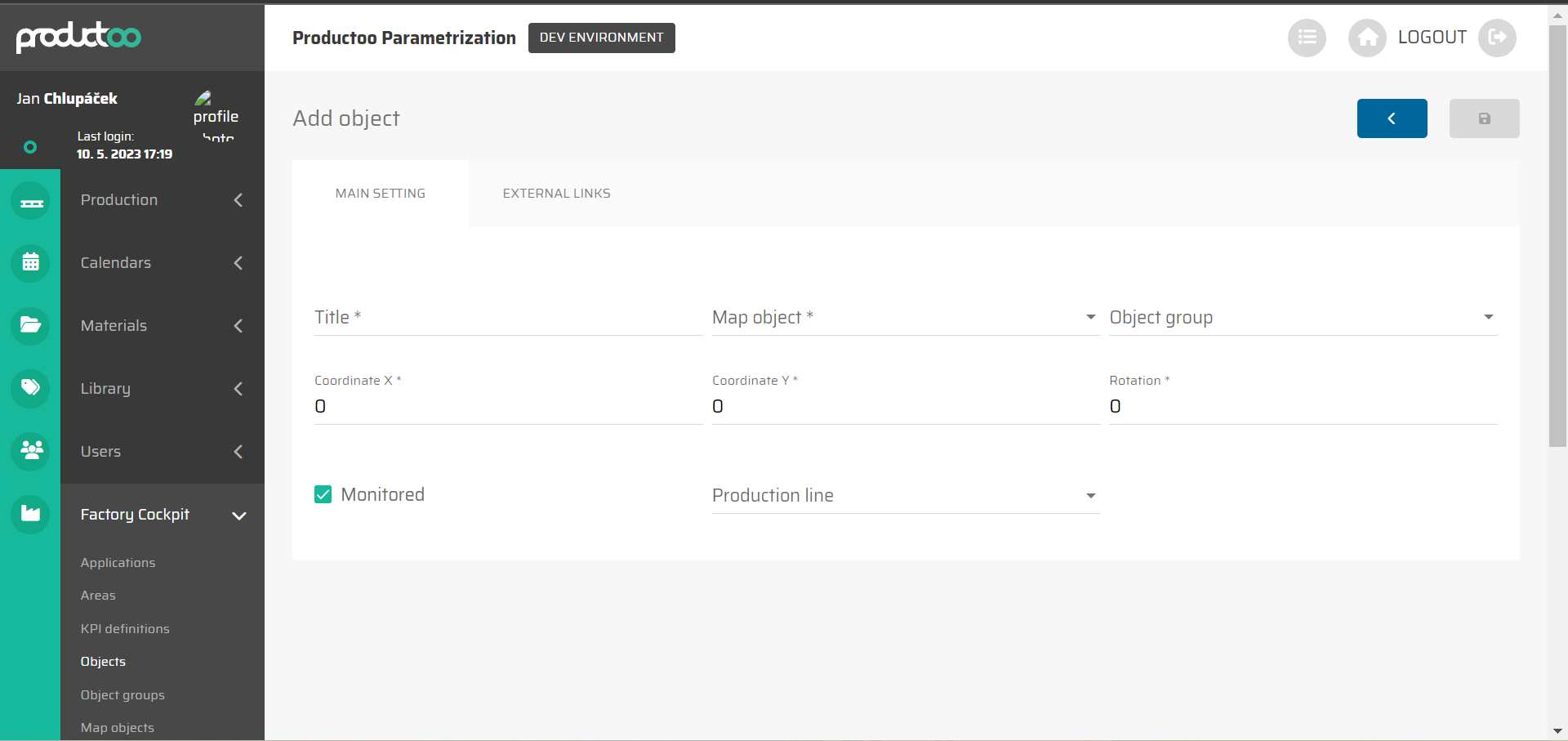

In the “Main Settings”, we primarily fill in the basic settings of Area.
In the below table there are all parameters of the Objects, tab Main Settings with its description.
Parameter name | Limitations | Possible values | Description |
|---|---|---|---|
Title | 100 chars | Free text | The title of the object. |
Map object | Define value | The list of all available Map object for selection | |
Object group | Define value | The list of all available Object group for selection | |
Coordinate X | 0 or positive number | Number | The coordinates of the object on the axis X. |
Coordinate Y | 0 or positive number | Number | The coordinates of the object on the axis Y. |
Rotation | 0 or positive number | Number | The rotation of the objects |
Monitored | Checkbox | On/Off | enables/disables the monitoring of the object |
Production line | Define value | The list of all available Production line for selection | Connects the objects with the production line. |
